6*36WS+IWRC Galvanized Steel Wire Rope 6x36 10mm 12mm 14mm Wire Rope For Lifting
Place of Origin:
Shandong, China
Brand Name:
Bangyi
Certification:
SGS,CE,ISO,ROHS
Model Number:
BY-GA-6*36WS
Standard Packaging:
500-3000m/ Reel
Delivery Time:
5-10 Days
Payment Terms:
T/T
Supply Ability:
70000 Tons/ Year
Product Details
Highlight:
6*36WS+IWRC Galvanized Steel Wire Rope
,6x36 IWRC Wire Rope
,14mm Steel Wire Rope
Product Name:
6*36WS+IWRC Galvanized Steel Wire Rope For Lifting 6x36 Wire Rope 10mm 12mm 14mm Wire Rope
Surface:
Bright/ Electric Galvanized/ Hot Dip Galvanized
Steel Grade:
45 #, 60 #, 65 #, 70 # Carbon Steel
Structure:
6X36WS
Diameter:
8.0-20.0mm
Package:
Wooden Reel/ Iron Reel/ Plastic Reel/ Roll
Product Description

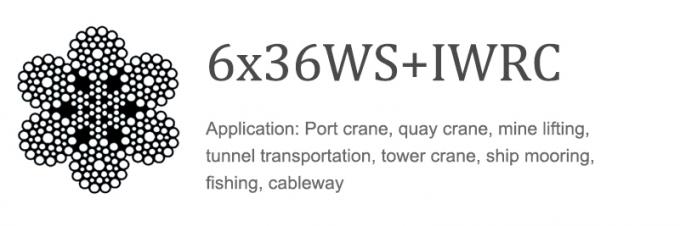

6×36WS+IWRC Galvanized Steel Wire Rope
Product Overview

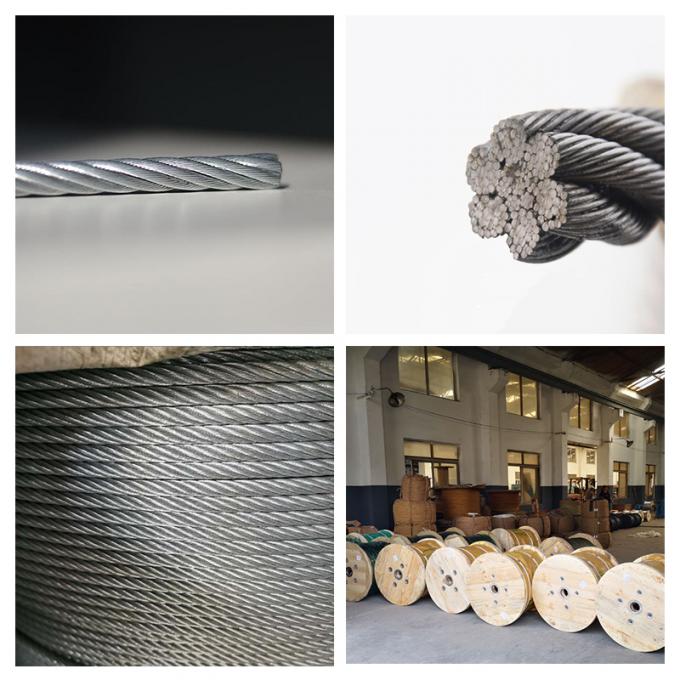

6×36WS galvanized steel wire rope is a multi-strand steel wire rope consisting of 6 outer layers, each containing 36 Warrington-Seale mixed arranged steel wires. The surface is treated with galvanizing, providing high strength, toughness, and excellent wear and corrosion resistance. This wire rope is resistant to compression and not easily deformed, making it ideal for various applications including lifting and hoisting, mining equipment, ship and maritime operations, and engineering machinery.
Available diameters range from 8mm to 60mm, with nominal tensile strength reaching 1670MPa to 1960MPa.
Technical Specifications
| Diameter (mm) | GB/T 20118-2006/GB8918-2006 | EN 12385-4 | ||||
|---|---|---|---|---|---|---|
| Min. Breaking Load (Kg) 1670N/mm² | Min. Breaking Load (Kg) 1770N/mm² | Approx. Weight (Kg/100m) | Min. Breaking Load (Kg) 1770N/mm² | Min. Breaking Load (Kg) 1960N/mm² | Approx. Weight (Kg/100m) | |
| 8 | 38.00 | 40.30 | 26.80 | 40.30 | 44.70 | 26.20 |
| 9 | 48.20 | 51.00 | 33.90 | 51.00 | 56.50 | 33.10 |
| 10 | 59.50 | 63.00 | 41.80 | 63.00 | 69.80 | 40.90 |
| 11 | 72.00 | 76.20 | 50.60 | 76.20 | 84.40 | 49.50 |
| 12 | 85.60 | 90.70 | 60.20 | 90.70 | 100.00 | 58.90 |
| 13 | 100.00 | 106.00 | 70.60 | 106.00 | 118.00 | 69.10 |
| 14 | 117.00 | 124.00 | 81.90 | 124.00 | 137.00 | 80.20 |
| 16 | 152.00 | 161.00 | 107.00 | 161.00 | 179.00 | 105.00 |
| 18 | 193.00 | 204.00 | 135.00 | 204.00 | 226.00 | 133.00 |
| 20 | 238.00 | 252.00 | 167.00 | 252.00 | 279.00 | 164.00 |

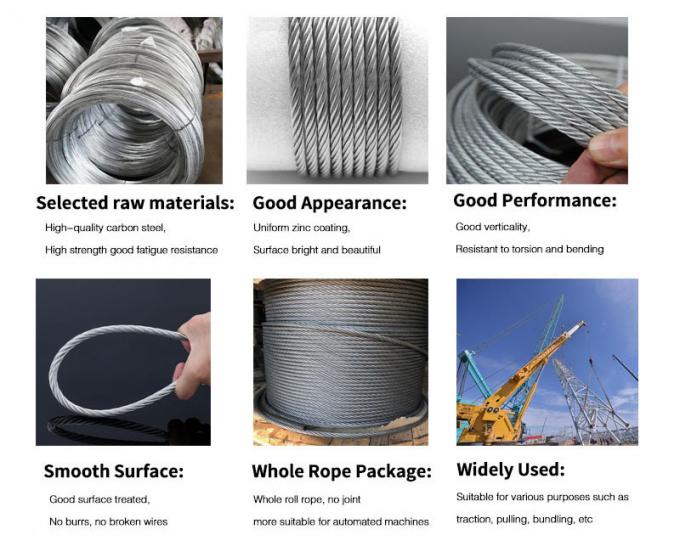

Product Features
Key Advantages
- Balance between high strength and toughness: Hybrid steel wire arrangement ensures even stress distribution with breaking force 5-10% higher than ordinary structures
- Enhanced flexibility: Fine steel wires fill gaps to prevent fatigue fracture after repeated bending
- Excellent wear and corrosion resistance: Galvanized layer provides physical barrier, extending service life 2-3 times longer than smooth steel wire rope in harsh environments
- Thick outer wire design: Enhances surface wear resistance for frequent friction operations
- Superior anti-compression performance: Tight strand structure resists deformation under radial pressure, ideal for drum winding and heavy lifting
- Minimal internal clearance: Reduces impurity entry and internal wear probability
Applications
Common uses of 6×36WS structure, 8.0-20.0mm diameter galvanized steel wire rope include:
- Lifting and hoisting: Cranes for ports and shipyards, tower cranes for construction
- Mining equipment: Mine lifting, scraper conveyor traction
- Maritime vessels: Mooring lines, tugboat operations
- Construction machinery: Hydraulic system traction for excavators and loaders
- Cableway systems: Scenic area freight or passenger cableways
Quality Certifications
Our steel wire rope meets international production standards and has obtained multiple certifications including SGS, CE, and ISO.
